QSL

station:

Position [GG.MM.SS]:	lat N51.39.36,45 lon E6.57.51,51 38.5 m MSL
Receiver:	JRC NRD 545 DSP
Converter:	own, 40 Hz - 112 kHz
aerial 40 Hz - 112 kHz:	2 x inductive, active, +3 - +33 dB, with round-characteristic
aerial 10 kHz - 280 MHz:	active, 0 dB + 4.6 dBi, vertical with round-characteristic
aerial 100 MHz - 2 GHz (3 GHz):	active, 16 dB + 7-11 dBi, vertical
aerial 100 MHz - 2 GHz:	active, 16 dB + 9 dBi, horizontal quad

Receiving Examples:

[Sound of RJH86] Bischkek, Kirgistan, 25 kHz, received with the VLF-converter and the NRD 545 at CW 25 kHz (temporary), 4917,7 km
[Sound of JJY40]Tamura/Kawauchi, Präfektur Fukushima, Japan, 40 kHz, received with the VLF-converter and the NRD 545 at CW 40 kHz (temporary), 8945.8 km
[Sound of MFS60] Anthorn, Great Britan, 60 kHz, received with the VLF-converter and the NRD 545 at CW 60 kHz, 767.4 km
[Sound of BPC] Shangqiu, China, 68.5 kHz, received with the VLF-converter and the NRD 545 at CW 68.5 kHz (temporary), 6963.8 km
[Sound of HBG75] Prangins, Swiss, 75 kHz, received with the VLF-converter and the NRD 545 at CW 75 kHz, 586.2 km (out of operation)
[Sound of DCF77] Mainflingen, Germany, 77.5 kHz, received with the VLF-converter and the NRD 545 at CW 77.5 kHz, 231.7 km
[Sound of RWM4996] Moskow, Russia, 4996 kHz, received with NRD 545 at USB 4995,0 kHz, 2045.9 km
[Sound of Navy HWU] Rosnay, France, 18.3 kHz, received with NRD 545 and VLF-converter at USB 18.3 kHz, 691.6 km

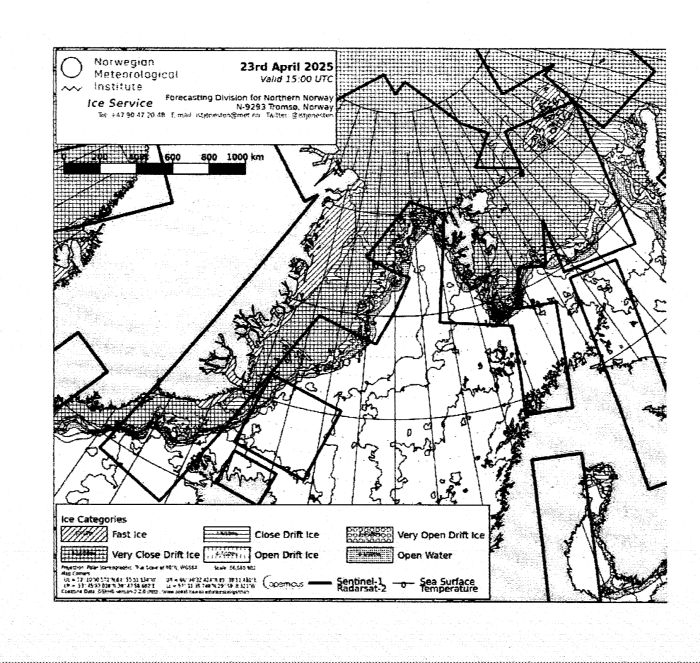

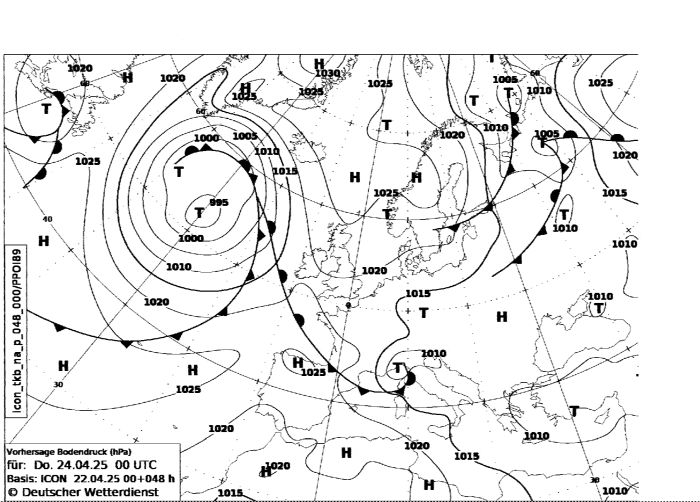

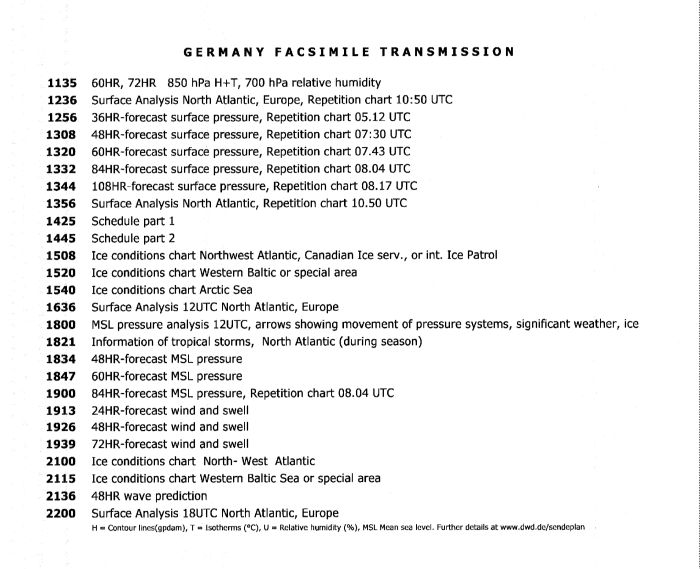

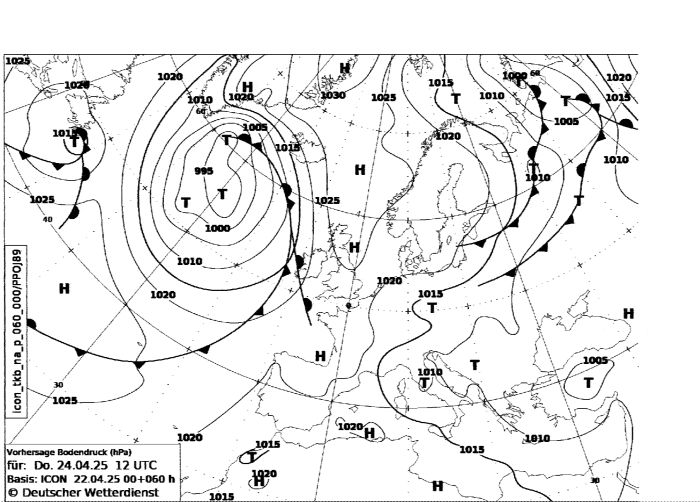

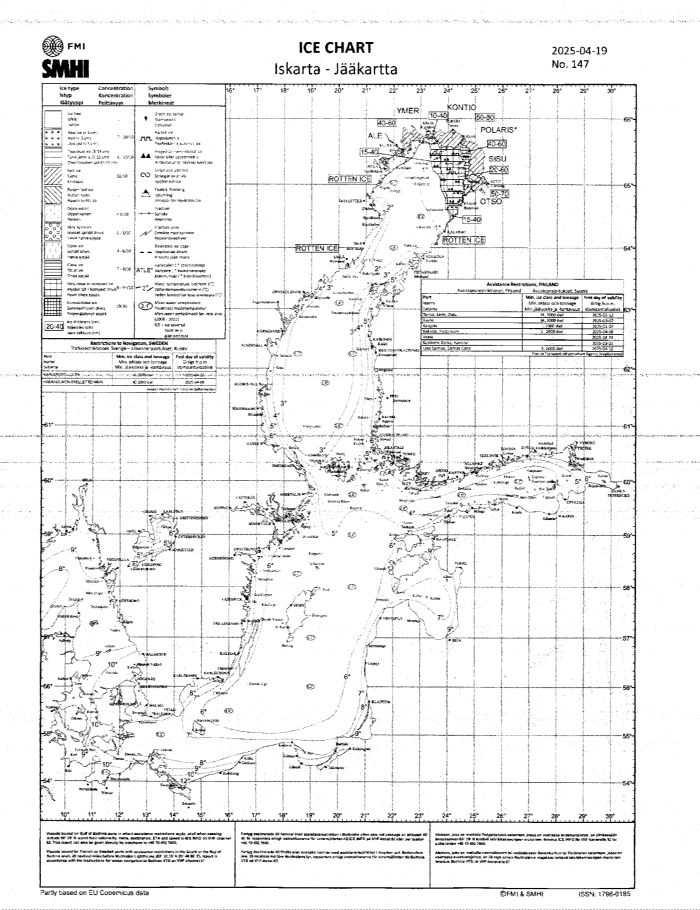

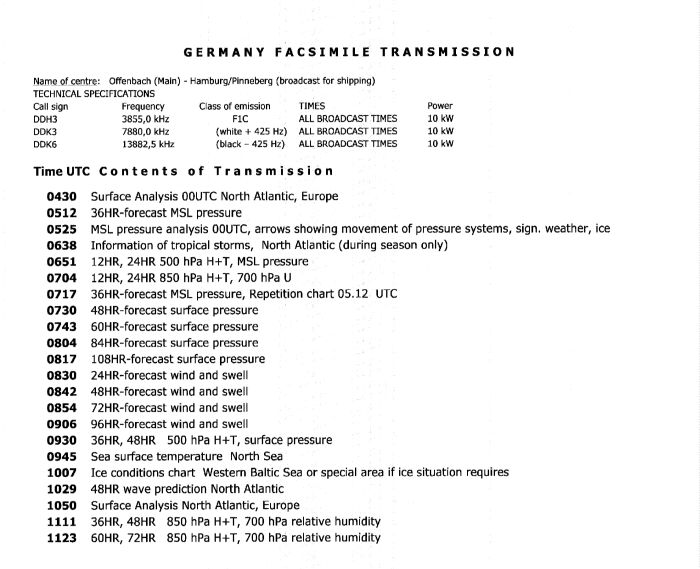

DDH3, DDK3, DDK6, 3855 kHz, 7880 kHz, 13882.5 kHz, F1C Shift +-425 Hz, 11th April 2006 Test

DDH3, DDK3, DDK6, 3855 kHz, 7880 kHz, 13882.5 kHz, F1C Shift +-425 Hz, 12th July 2004

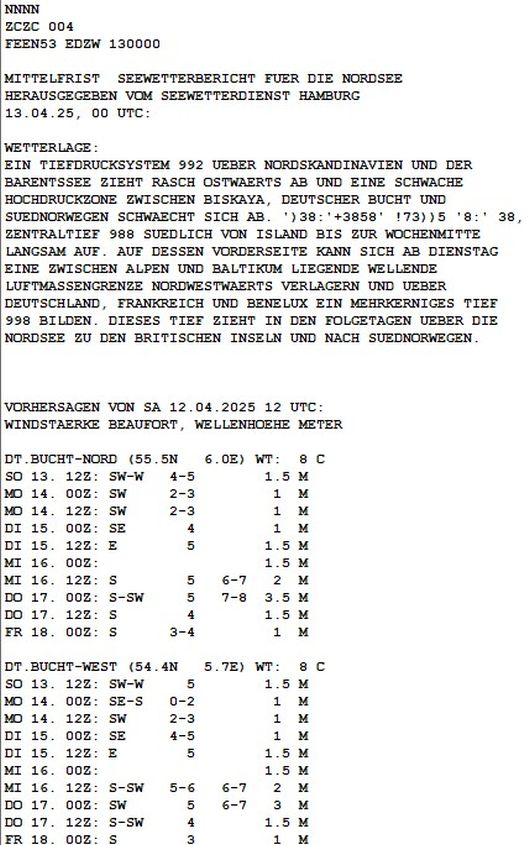

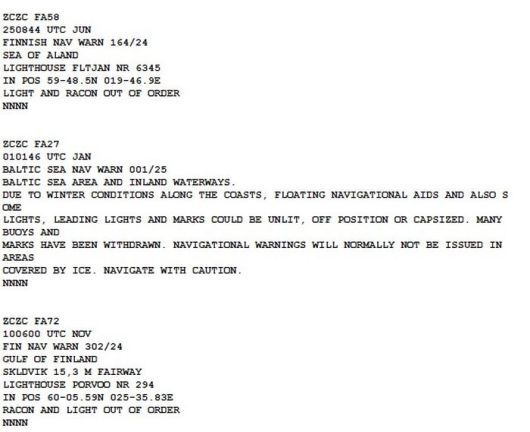

DDH47 147.3 kHz RTTY F1B 50 Baud Shift +-42.5 Hz, 1st February 2004
